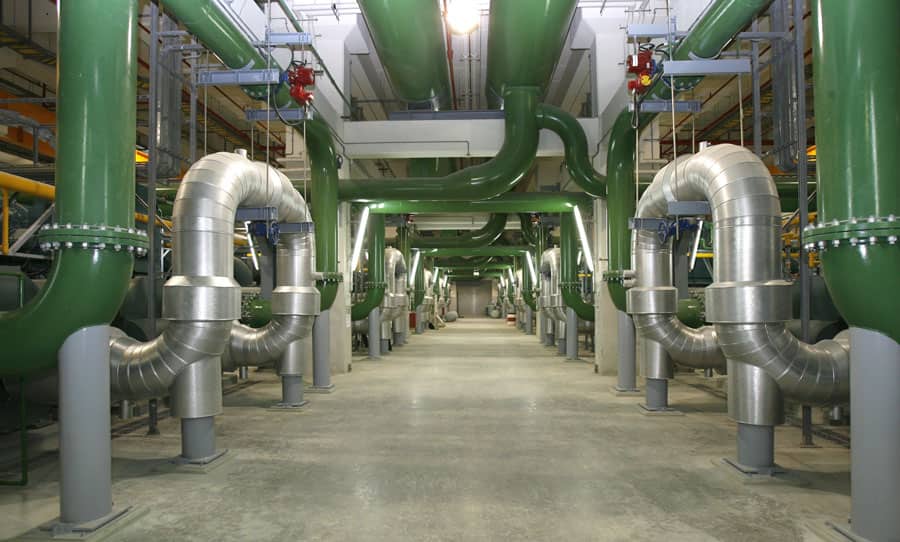

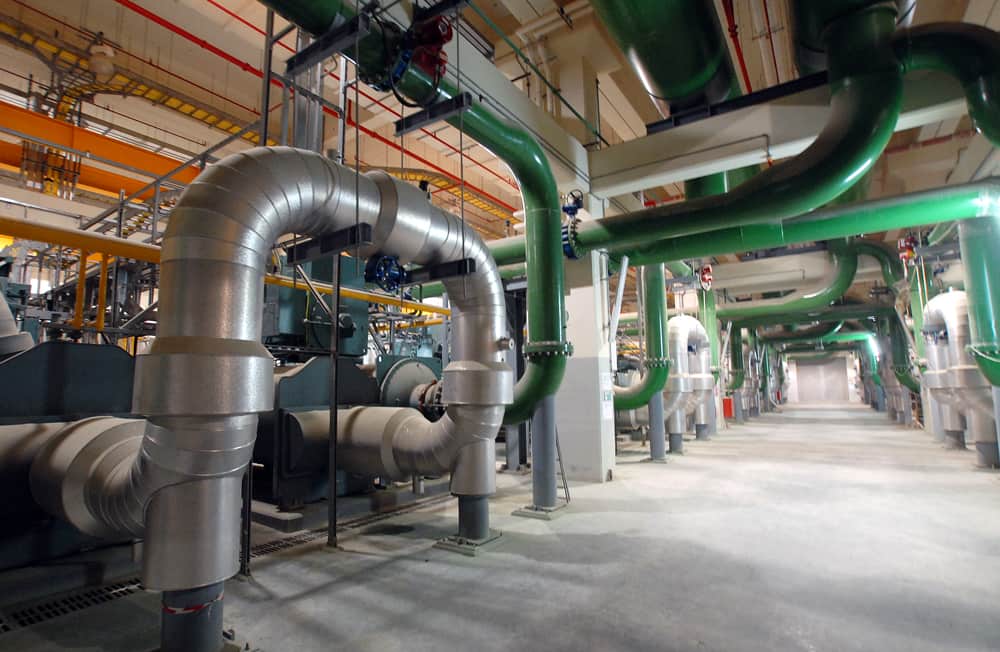

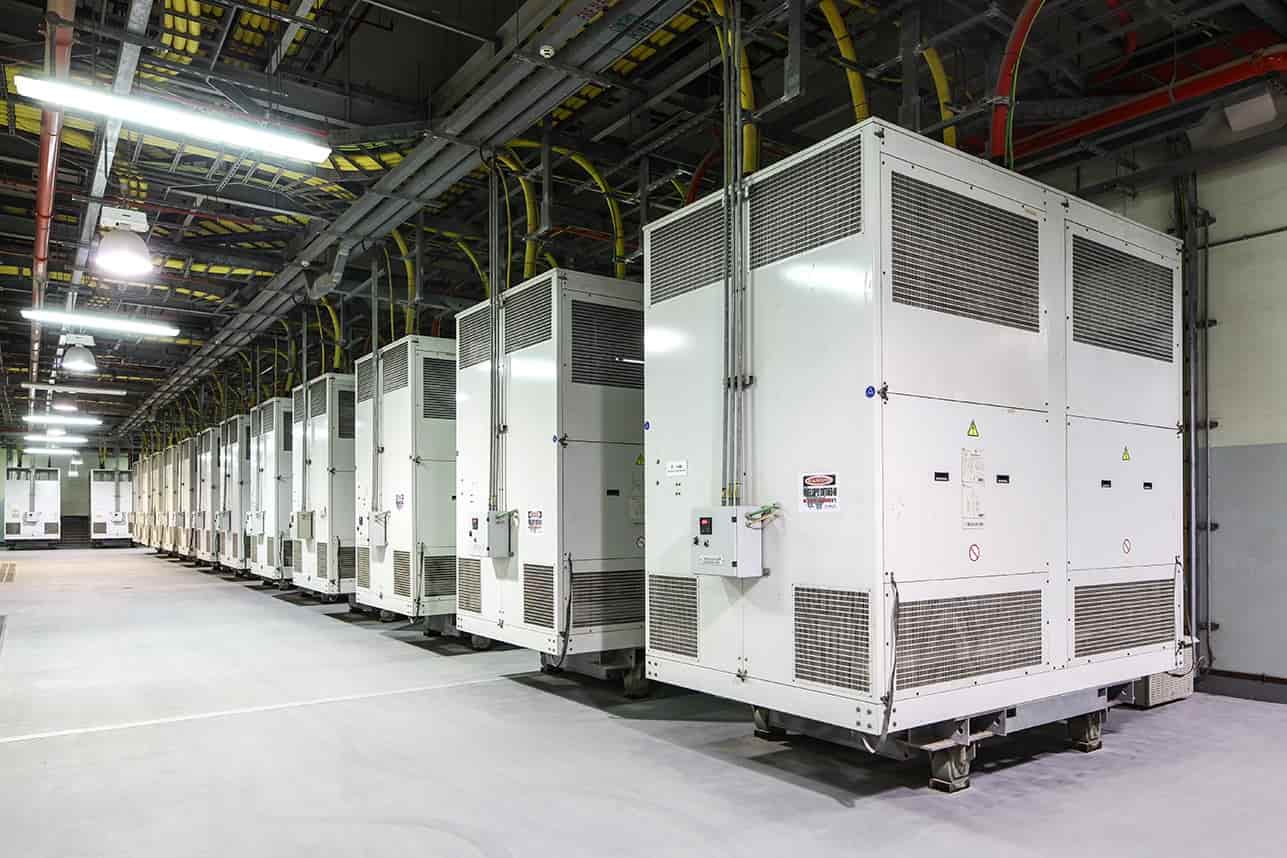

One of the World’s largest District Cooling Plant, with 203m(L)x75m(W)x34m(H) and 48,000 m² B.U.A., consisting of 130,000 tons of refrigeration produced by 52 chillers, 52 pumps and 26 cooling towers distributed via 120 ETS & HEX rooms and necessitating 35,000m3 per day RO plant. The plant main electrical components consist of 170 MVA HV/MV substation (3 nos. 50/60 MVA transformers) supplying through 3 nos. 11 kV feeders 26 nos. 5.9 MVA & 8 nos. 1.6 MVA step down transformers feeding a number of 3.3kV & 415V MCCs.
Scope of Work:
Architectural, civil and structural foundation design and shopdrawings, P&ID drawings, electrical equipment layout and earthing mesh drawings, electrical single line diagrams for 11kV, HVAC and plumbing layouts, piping general arrangement layouts, sectional views, pipe support details, and miscellaneous details in addition to site engineering assistance.
- Contractor: CAT Int. (Qatar)
- Lead Consultant: Stanley Consultants Inc. (USA)
- Supervision Consultant: Dar Al-Handasah (Shair & Co.)
- Engineering Sub-Consultant: DEP (Lebanon)
- Location: DOHA - QATAR
- Year: 2006 - 2008
- Client: UDC / Qatar Cool
